• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Model:
    TD-260T
    Screen scale:
    16:9
    Resolution:
    1680 * 1050
    Point distance:
    14.6 mm
    Average luminance:
    - cd/㎡
    Contrast ratio:
    -
    Response speed:
    - ms
    Interface type:
    RS232C interface
    Power:
    - w
    Authentication:
    3C certification

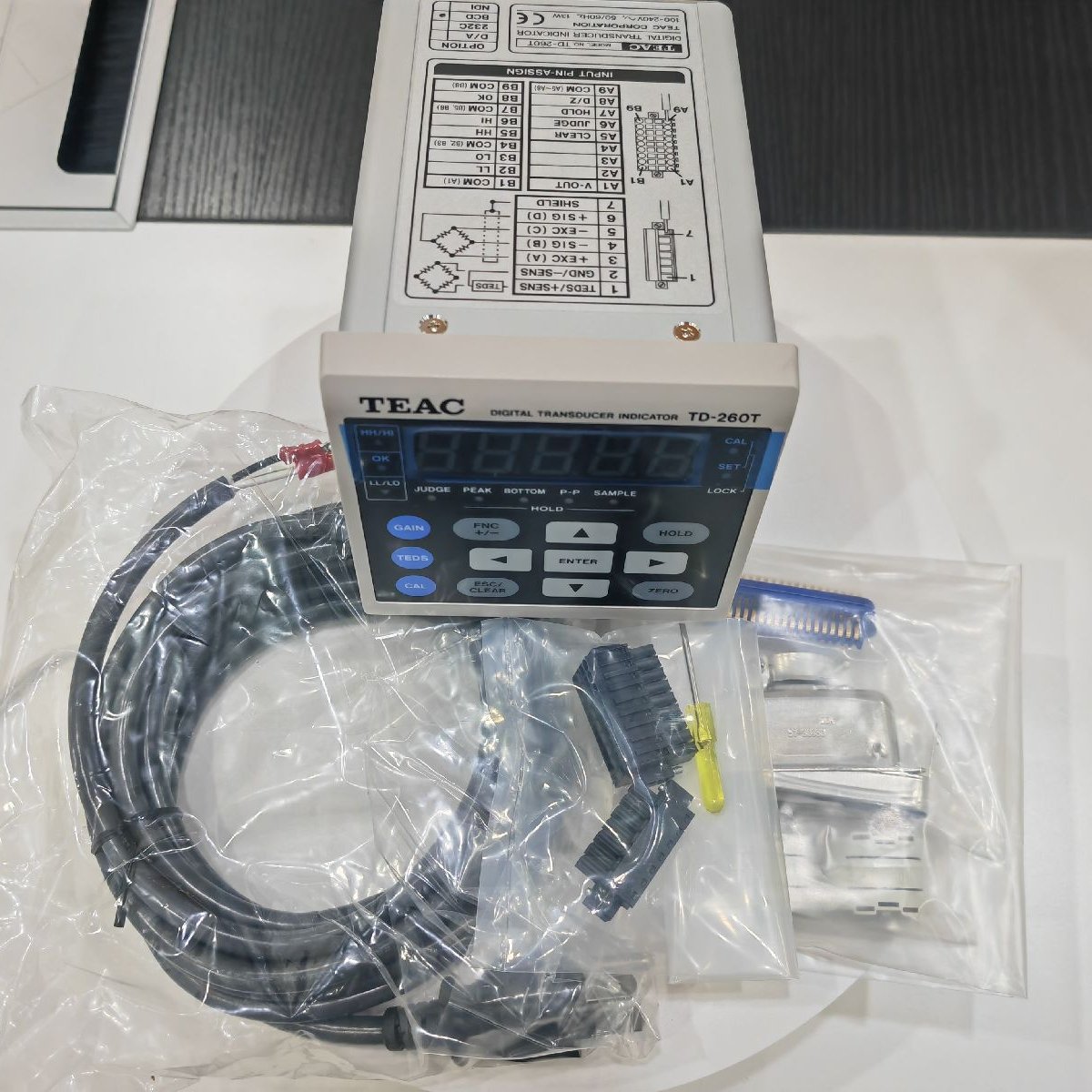

    Product Description

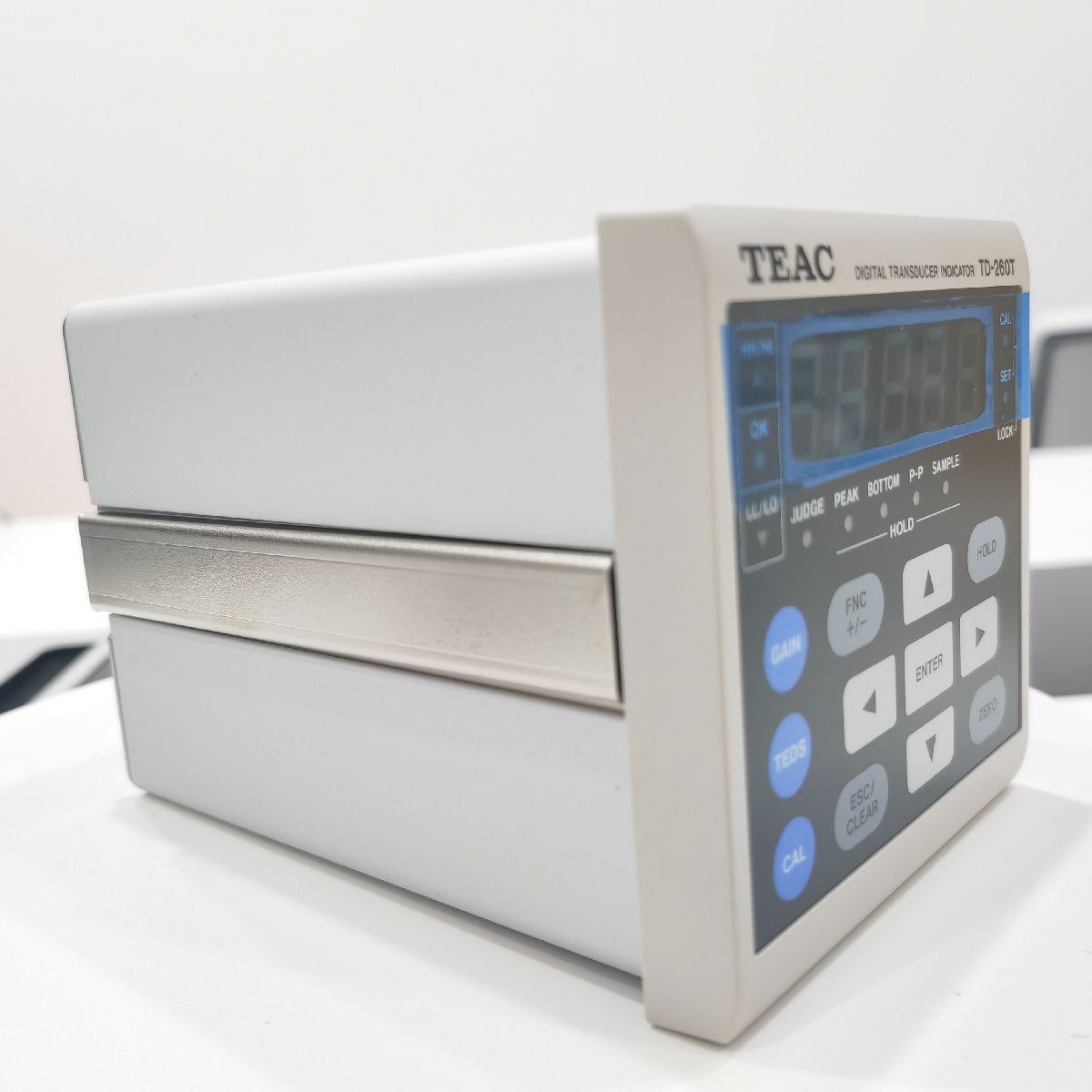

    DIN 96 size

    Compact DIN96 size with DIN1 / 4 (92 x 92 mm) panel mounting holes.


    bridge voltage DC, 10 / 2.5V, 10% current * max. 60mA (remote sensing available)
    Signal input range ±3.2 mV/V
    Equivalent Input/TEDS calibration range 0.3mV/V to 3.2mV/V
    calibration accuracy Within 0.1%FS (BV 10V, sensor sensitivity 0.5mV/V or higher)
    zeroing range ±2.0 mV/V
    accuracy straightness Within 0.01% FS + 1Digit (when input is above 1 mV/V)
    zero-drift Within 0.5 V/℃ (input conversion value)
    gain drift ±Within 0.005%FS/℃
    A/D conversion speed 100 beats/second
    analog filter Select from 3, 10, 30, 100, 300Hz (-12 dB/ oct)
    simulation
    voltage output    		 voltage Approx. 2V per 1mV/V
    load resistance More than 2k
    TEDS function IEEE 1451.4 Class 2 Mixed Mode Interface
    However, it cannot be used in conjunction with the remote sensing function of the application power supply.
    show display character Character height 14.6mm 7 segments digital green LED display
    indication range -19999-99999
    decimal point Display position selectable
    impressions Choose from 4, 6, 10, 20 beats/sec
    display items calibration settings Zero calibration/span calibration (TEDS calibration, actual load calibration, equivalent input calibration)
    function set Upper/lower comparison mode, hysteresis,
    near zero, digital filter, analog filter,
    Motion detection, zero tracking, static distortion,
    Digital Zero, Zero Offset, Hold Mode, Key Lock,
    * Small scale, number of impressions, sensor applied voltage, bridge voltage,
    Digital Zero Limit, Digital Clear, Compare Output Mode,
    Remote sensing, comparison output control, data output selection,
    BCD data update rate, RS232C, D/A converter
    hold function Sample Hold, Peak Hold, Valley Hold,
    Peak-to-peak hold, partially specified hold (peak, valley,
    Peak to Peak)
    external input/output
    signal    		 import Hold, Judge, Clear, Zero
    output HH, HI, OK, LO, LL relay 1a contact, analog voltage
    power supply AC power specification AC100V-240V 13W
    operating temperature limit -10℃~40℃
    storage temperature range -20℃~60℃
    Operating humidity range 85% RH or less (non-condensing)
    meet the standards standard of security EN61010-1 Pollution Class 2 Overvoltage Category II, CE Mark
    electromagnetic compatibility VCCI (Class A), EN61326 (Class A), EN61000-3-2, EN61000-3-3
    Outline size (W x H x D) Approx. 96 mm x 96 mm x 146 mm (excluding projections)
    large number of Approximately 950 grams
    Optional models TD-260T AC(BCD): BCD parallel data output
    TD-260T AC(232C): RS-232 C serial data output
    TD-260T AC(D/A): D/A Converter Voltage Current Output
    TD-260 T AC (NDI): NDIS Panel
    Option ( cannot be used for
    model with options)    		 NDIS Panel (P/N-260DN)
