• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Model:
    UTMII-0.5NM/1NM/2NM
    Processing customization:
    Yes
    Measuring range:
    2 N.m
    Display resolution:
    0.003 °
    Travel:
    1 mm
    Specimen size:
    50 mm
    Overall dimension:
    80 mm
    Applicable scope:
    Dynamic torque testing
    Product Description

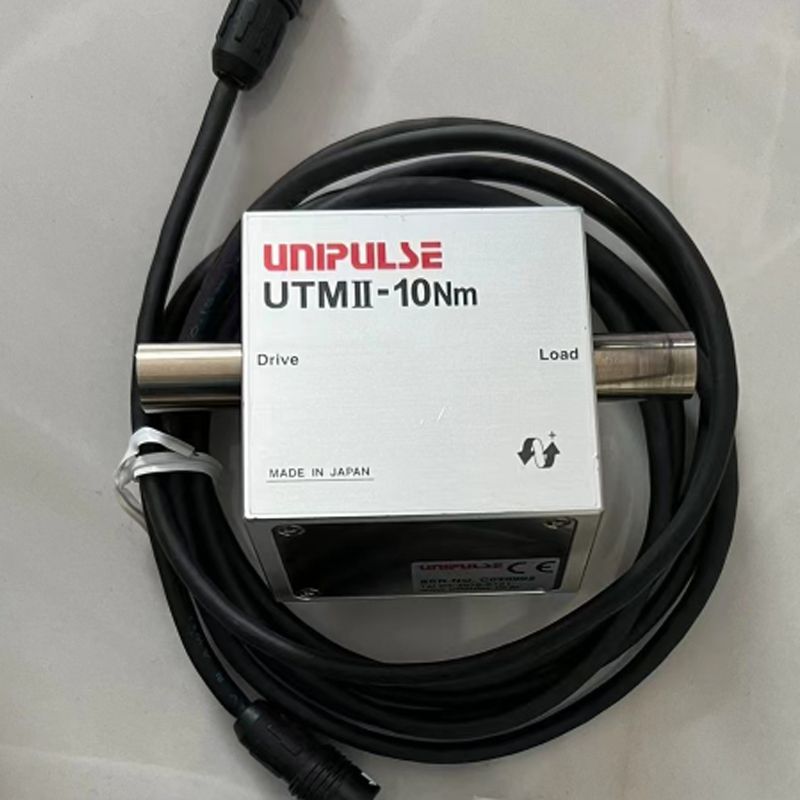

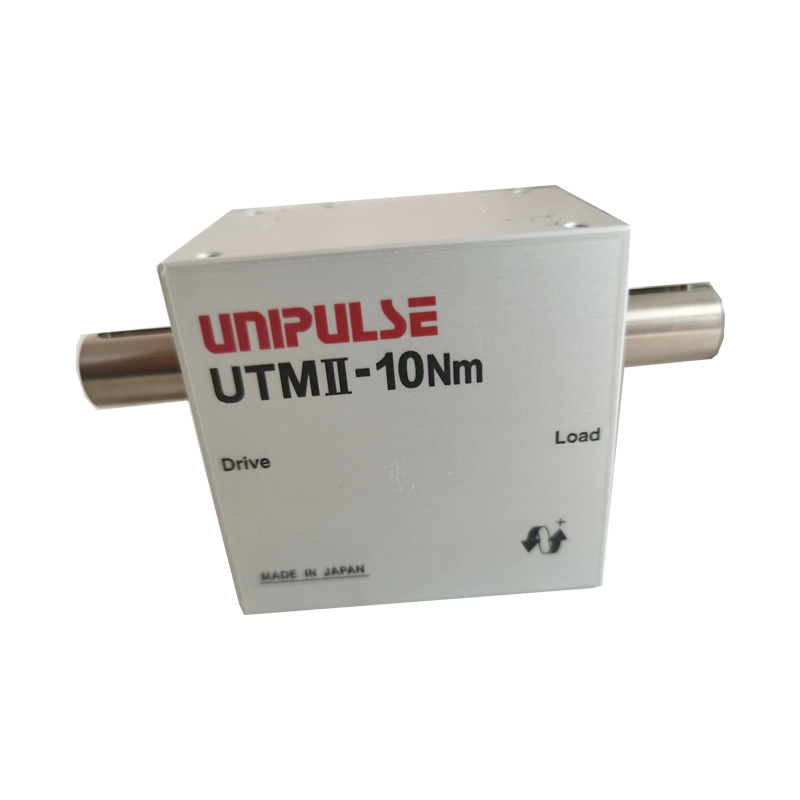

    Miniature Nonlinear 0.03% Rotary Torque Transducer
    It has amplifier, analog voltage output, no slip ring and other functions, and realizes miniaturization.

    Nonlinear 0.03%, non-contact, built-in amplifier, small and lightweight
    Nonlinearity 0.03%, good stability
    It has a resolution of 1/10000 and achieves zero stability.
     Non-contact, no brush replacement required
    No brush contact parts, no need for regular maintenance and replacement of parts.
    Allowable speed range 25000 rpm (0.05 ~ 10Nm)
     Low starting torque
    The starting torque is very small, only 0.00001 Nm (UTM II-0.05Nm)
    Torque Value± 5 V Voltage Output
    Simultaneous torque and speed detection
    Power can be measured in real time via torque and rotation pulse signals.



    Detecting torque changes versus angle
    Equipped with rotary encoder option on UTM II, torque and angle can be managed simultaneously.


    technical parameters
    ■ 0.05Nm ~ 10Nm

    model
    Nm    0.05    0.1    0.2    0.5    1    2    5    10
    Optional   rotary encoder   Rotary encoder
    keyway
    Enclosure size
    W
    H
    D
    mm    54
    50
    40    57
    55
    40
    overall length
    mm    74    84    97
    shaft diameter
    mm    5    8    12
    Current consumption   less than 100 mA
    Speed range   25000 rpm
    Weight   approx. 160 g   approx. 180 g   approx. 270 g
    ■ 20Nm ~ 10000Nm

    model
    Nm    20    50    100    200    500    1000    2000    5000    10000
    Optional   rotary encoder
    keyway   keyway
    Outline size
    W
    H
    D
    mm    70
    68
    51    67
    74
    57    67
    79
    62    67
    79
    72    86
    103
    98    86
    119
    111    97
    141
    137    103
    166
    162
    overall length
    mm    150    170    177    187    217    286    306    387    447
    shaft diameter
    mm    20    25    30    40    60    70    90    110
    Current consumption   150 mA or   less  160 mA or less
    Speed range   20000
    rpm    15000
    rpm    12000
    rpm    10000
    rpm    7000
    rpm    6000
    rpm    5000
    rpm    4000
    rpm
    Weight   About 700 g   About 1.1 kg   About 1.5 kg   About 2.6 kg   About 7.3 kg   About 10.5 kg   About 21.4 kg   About 36 kg
    ■ Technical parameters

    Power Input   DC 24 V± 15%
    Output signal   ±5 V DC load resistance: more than 2 kΩ
    Reaction performance   1 kHz
    Pulse output   1 rotation output 4 pulses
    Open collector output rated DC 30 V 10 mA
    Allowable overload   500% FS
    Nonlinearity   0.03% FS
    Lag   0.03% FS or less
    Repeatability   0.03% FS or less
    Operating temperature range   -10 ~ +50℃
    Temperature effect at zero   0.01% FS/℃ below
    Temperature effect during output   is  less than 0.01% FS/℃
    CE compliant   EMC directives: EN61326-1, EN61326-2-3
    Model Composition


    download
    Product leaflet (PDF)
    UTMⅡ Product Sheet
    Manual (PDF)
    UTMⅡ-0.05-2Nm User Manual
    UTMⅡ-5/10Nm User Manual
    UTMⅡ-20Nm User Manual
    UTMⅡ-50Nm User Manual
    UTMⅡ-100Nm User Manual
    UTMⅡ-200Nm User Manual
    UTMⅡ-500Nm User Manual
    UTMⅡ-1000Nm User Manual
    UTMⅡ-2000Nm User Manual
    UTMⅡ-5000Nm User Manual
    UTMⅡ-10000Nm User Manual
    UTMⅡ Rotary Encoder_1.05
    external view
    DXF
    （ZIP）
    PDF
    support tools
    software
