• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Model:
    CSD-815B
    Processing customization:
    No
    Overall dimension:
    96×96×129.5 mm
    Weight:
    0.5 kg
    Power supply voltage:
    100-240 v
    Measuring range:
    -99999~99999
    Use:
    Weighing display instrument
    Product Description

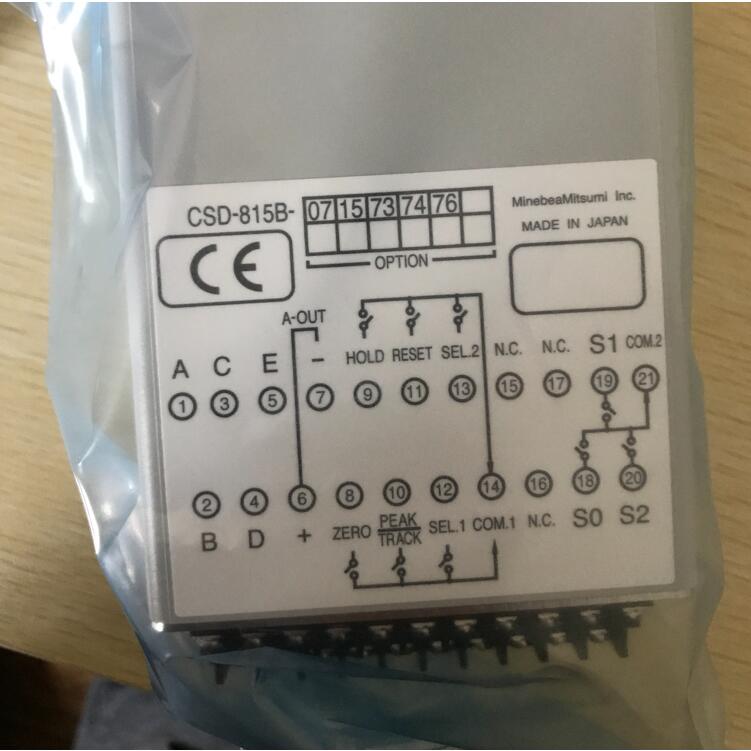

     NMB CSD-815B Digital Indicator High Precision Display Instrument

    Features:
    1. Compact design (96mm× 96mm× 129.5 mm)
    2. Light weight (approx. 0.5 kg）
    3. Equipped with three-step precision measuring instrument and different control I/O
    4. With peak hold function
    5.CE certification
    Technical parameters:
    bridge working voltage DC5 V 0.25 V within 60mA (switchable to DC2.5V)
    input range ±0.4 mV/V ~ 3.1 mV/V (bridge working voltage is DC 5V)
    output range DC±10 V
    output rate Variable: 4 times/s, 20 times/s, 50 times/s or 100 times/s (synchronous display rate)
    output resolution Approximately 1/12,000
    zero adjustment range ±2.4 mV/V
    nonlinearity Display part: 0.01% F.S Output part: 0.05% F. S
    input noise ±0.6 Vp-p or less
    temperature class Zero 0.2 V/℃ (input transition); Sensitivity: 0.0015% F.S./℃
    input filter 2 Hz(can be changed to: 10 Hz, 100 Hz or 2 kHz)
    A/D sampling rate 100 beats/second
    detection Approx. 0.3 mV/V
    load display 17mm 7mm red LCD display
    indication range -99 999 ~ 99 999
    display rate 4 times/s (optional: 20 times/s, 50 times/s, 100 times/s)
    external control function Clear, Hold, Peak Track, Reset
    set point -99 999 ~ 99 999
    setting number S1,S2,S3,S4points
    switching rate 4 beats per second, 20 beats per second, 50 beats per second or 100 beats per second
    different functions Zero tracking, filter, peak hold, optional analog output
    work environment Temperature-10℃-50℃ Humidity below 85%RH (non-concentrated)
    instrument operating voltage AC100 V ~ AC240 V 50/60 Hz (allowable variation range is 85~264V)
    power dissipation Approx. 19 VA excluding AC100V; Approx. 23VA* Large
    Outline size 96 mm×96 mm×129.5mm
    weight CA 500g

    Selection:
    P07 Current output (DC 4-20mA)
    P15 BCD output
    P73 CC-Link
    P74 RS-232C
    P76 RS-422/485
